HOW TO SETTING WIRELESS N ACCESS POINT TP-LINK TL-WA901ND AS ACCESS POINT

       Previously I've explained the notion and function of the Access Point in the  http://portofolio-argayudhaadhiprama.blogspot.co.id/2015/08/perangkat-jaringan-komputer-dan.html and now I want to share to your friends how the settings or the configuration of the Wireless Access Point TP-LINK TL-WA901ND I got.

Tools and Materials :

1. Access Point

2. the Adaptor and POE

3. The cable UTP category 5E

Before I move on to setting up Access Point I will tell you important things that must be remembered by friends that the Access Point TP-LINK TL-WA901ND can gives as:

1. Access Point Mode

2. Client Mode

3. WDS Universal Repeater Mode/

4. Bridge Mode

5. Multi-SSID Mode

Now I will be setting up Access Point TP-LINK TL-WA901ND Access Point Mode with

The Steps

1. Plug the adapter to the electrical and ends to the POE

2. Once plugged in the RJ45 POE ports, there are two that reads POE and LAN

3. Plug the cable utp in POE that reads POE Access Point with TP-LINK TL-

Wa901nd Access Point because in the RJ45 ports 1 port

4. Plug the cable utp in POE that reads LAN with computer/laptop there is

The result will be more or less like the picture below

5. now go into setting the TP-LINK TL-WA901ND, first sign in to the Login page Page.To open the login page page TP-LINK TL-WA901ND type http://tplinkap.net with user: admin and password: admin,. When the tp-link that friends have different types can be seen behind the access point. its or read guidebooks tp-link.

This login page image is the TP-LINK TL-WA901ND

6. after admission to the TP-LINK TL-WA901ND choose Quick Setup

7. After click next then it would appear the quick setup page select the nex again thenstart quick setup page appears.

see picture below

8. After click next then it would appear we select the setup mode Access Point because I wanted to Access Point Mode on the Access Point and click next again

9. After click next then it will appear on the Wireless Settings page we can fill in thename of the Access Point we desire as I filled in the name of the Access Point with theWIFI-ZONE with password: 12345qwerty, then click next

see below image so that more clearly

10. After click next it will pop up a page Network Settings we just let the default directsetting just click next

11. After that we can see the finish page of the settings we do last as the Access Pointname and its Password.

12. To end our settings click finish then later will notice to reboot if there is a noticelike that click reboot only if no then you should be rebooting itself because if ourearlier settings not reboot then it will not be saved and setting up repeating it again

How to rebooting is Click system tools--> click reboot--> click ok

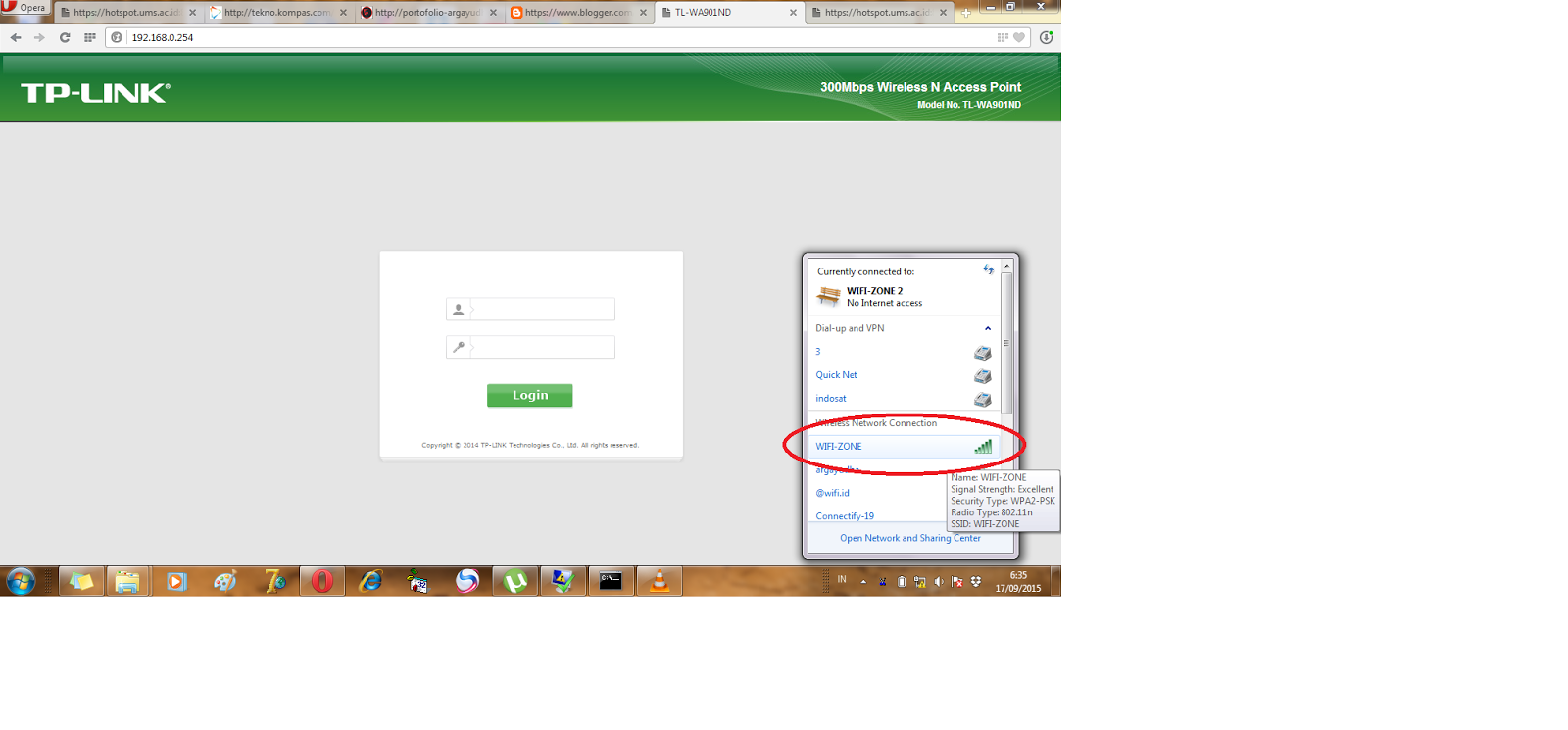

After successful rebooting now we check if the Access Point settings above we alreadyappear on the Wireless Network

Now that we've completed the setting of the Acess Point with an SSID: WIFI-ZONEand Password: 12345qwerty our stay connect to the wifi and Internet points

Editor : Arga Yudha Adhiprama
